DETAILS

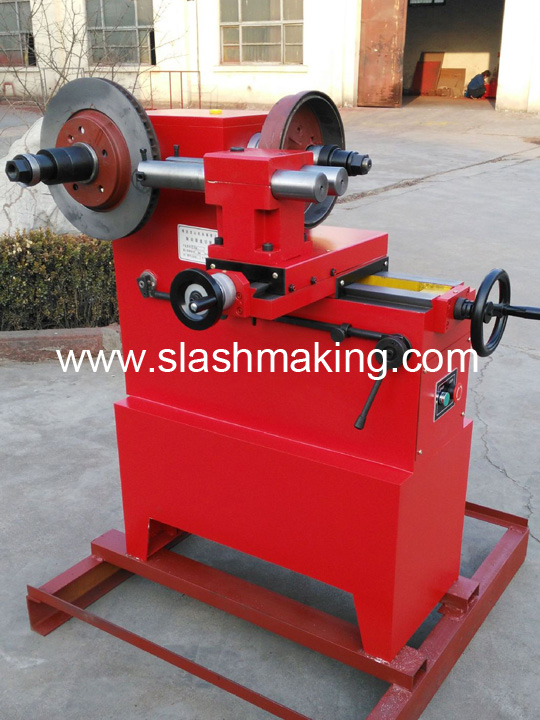

Brake Lathe C9350 is mainly suitable for processsing the brake drum and brake disc of small, medium cars and buses.
| Specification | Unit | C9350 |
| Brake Drum Diameter | mm | 180-420 |
| Brake Disc Diameter | mm | 180-500 |
| Rotating speed of work piece | r/min | 30/54/80 |
| Max. Travel of Tool | mm | 225 |
| Main Motor | kw | 1.1 |
| Overall Dimension(LxWxH) | mm | 980x870x1020 |
| N.W/G.W | kg | 260/320 |
